Polyvinyl Privacy Fences
The definition of privacy: seclusion, a private place, free from intrusion. What makes privacy: tongue & groove panels, unique textures, and the combination of vinyl and aluminum creating Designer Fencing. What compliments privacy: lattice and spindle accents. When all of these elements are combined, you get a definition to your space.
Superior Privacy Fence
SUPERIOR SPECIFICATIONS
Heights: 48″, 60″, 72″, 84″*, 96″*
Sections: 8′ Centers
Colors: White and Tan
Post: 5″ x 5″ (.150″ Wall)
Post Caps: Flat (Standard); Gothic or Ball (Optional)
Rails: 1 3/4″ x 5 1/2″
Verticals: 7/8″ x 11.28″ Snap Lock Tongue & Groove
Aluminum Reinforcement: Bottom Rail
Option: Rackable Sections Straight
*84″ and 96″ with Aluminum Reinforced Mid-Rail.
Aluminum stiffeners required in all line and end posts for 84″ and 96″ heights.
STANDARD GATES SPECIFICATIONS
Single Width: 36”, 42”, 48”, 60”, 72”
Double Width: 72”, 84”, 96”, 120”, 144”
Aluminum Post Stiffeners: Gate Posts
Aluminum Reinforced Frame
Available in: Convex
Larger Aluminum Framed Gates Available
Superior II
Heights: 48″, 60″, 72″, 84″, and 96″
Note: 84″ and 96″ come with an Aluminum Reinforced Mid-Rail
84: and 96″ heights not available in Antique Beige, Cottage Grey, and Sienna
Sections: 8′ (Center to Center)
Posts: 5″ x 5″ (.165″ Wall)
Post Caps: Flat Cap available in White, Tan, Mocha and Sienna.
Optional Gothic, Trim, and Ball Caps are available in White, Tan, and Mocha.
Optional Magena Star Post Cap Lighting available. See Magena Star Lighting Page.
Rails: 2″ x 7″ Top and Bottom Rails. Bottom Rail is Aluminum Reinforced.
Verticals (White, Tan, and Mocha): 7/8″ x 11.28″ Snap Lock Tongue and Groove
Verticals (Antique Beige, Cottage Grey, and Sienna) 7/8″ x 6″ Tongue and Groove
Colors: White Verticals – White Posts and Rails
Tan Verticals – Tan Posts and Rails
Mocha Verticals – Mocha Posts and Rails
Sienna Verticals – Sienna Posts and Rails
Antique Beige Verticals -Mocha Posts and Rails
Cottage Grey Verticals – White Posts and Rails
Racking (White, Tan, and Mocha): 2″ Standard Optional 7″ Rackable Section (12″ per 8′ Section)
Racking (Antique Beige, Cottage Grey, and Sienna) 10″ Standard
Designer Fencing
Designer Fence provides the privacy of vinyl infills with the durability and aesthetics of a powder coated aluminum fence. The Aluminum Frame of Designer Fence is available in 12 standard AAMA 2604 colors and 6 infill colors. Designer Fence is perfect as a privacy fence for pools, hot tubs, patios, and yards.
Heights: 48″, 60″, 72″
Sections: 8′ Centers (4′, 5′, 6′ 7′ Optional)
Posts: 3″ x 5″ (.070″ Wall)
Gate Post: 3″ x 5″ (.125″ Wall)
Post Caps: Flat (Standard)
Aluminum Rails: 1 1/4″ x 5 1/2″ (.065″ Wall)
Verticals: 7/8″ x 11.28″ Snap Lock Tongue & Groove (available in White, Tan, and Mocha) 7/8″ x 6″ Tongue & Groove (available in Antique Beige, Cottage Grey, and Sienna)
Aluminum Frame Includes: Rails, Posts, Caps
Vinyl In-fills Include: Vertical Panels and Side Channels
Majestic Privacy Fence
MAJESTIC SPECIFICATIONS
Heights: 48″, 60″, 72″, 84″*, 96″*
Sections: 8′ Centers
Colors: White and Tan
Post: 5″ x 5″ (.150″ Wall)
Post Caps: Flat (Standard); Gothic or Ball (Optional)
Rails: 1 3/4″ x 5 1/2″
Verticals: 7/8″ x 11.28″ Snap Lock Tongue & Groove
Aluminum Reinforcement: Bottom Rail
Option: Rackable Sections
*Aluminum stiffeners required in all line and end posts for 84″ and 96″ heights.
STANDARD GATES SPECIFICATIONS
Single Width: 36”, 42”, 48”, 60”, 72”
Double Width: 72”, 84”, 96”, 120”, 144”
Aluminum Post Stiffeners: Gate Posts
Aluminum Reinforced Frame
Available in: Concave & Convex
Larger Aluminum Framed Gates Available
Kingston Privacy Fence
KINGSTON SPECIFICATIONS
Heights: 48″, 60″, 72″, 84″*, 96″*
Sections: 8′ Centers
Colors: White and Tan
Post: 5″ x 5″ (.150″ Wall)
Post Caps: Flat (Standard); Gothic or Ball (Optional)
Rails: Decorative “Bread Loaf” Top Rail and 1 3/4″ x 5 1/2″ Mid & Bottom Rails
Verticals: 7/8″ x 11.28″ Snap Lock Tongue and Groove and 1 3/8″ x 1 3/8″ Spindle Accent
Aluminum Reinforcement: Bottom Rail
Option: Sunburst Section or Gate
*Aluminum stiffeners required in all line and end posts for 84″ and 96″ heights.
STANDARD GATES SPECIFICATIONS
Single Width: 36”, 42”, 48”, 60”, 72”
Double Width: 72”, 84”, 96”, 120”, 144”
Aluminum Post Stiffeners: Gate Posts
Aluminum Reinforced Frame
Available in: Concave & Convex
Larger Aluminum Framed Gates Available
Westwood Privacy Fence
WESTWOOD SPECIFICATIONS
Heights: 48″, 60″, 72″, 84″*, 96″*
Sections: 8′ Centers
Colors: White, Tan, Sierra (Woodgrain Texture)
Post: 5″ x 5″ (.130″ Wall)
Post Caps: Flat (Standard); Gothic or Ball (Optional)
Rails: 1 3/4″ x 5 1/2″
Verticals: 11.3″ Triple Panel Tongue & Groove
Aluminum Reinforcement: Bottom Rail
Option: Rackable Sections
*84″ and 96″ Heights include aluminum reinforced mid-rail.
STANDARD GATES SPECIFICATIONS
Single Width: 36”, 42”, 48”, 60”, 72”
Double Width: 72”, 84”, 96”, 120”, 144”
Aluminum Post Stiffeners: Gate Posts
Aluminum Reinforced Frame
Available in: Concave & Convex
Larger Aluminum Framed Gates Available
Polyvinyl Privacy Fences
PolyRail Vinyl Fence systems offer privacy, picket, semi-privacy, ornamental, and post & rail designs with a transferable lifetime limited warranty. Utilizing durable gates systems and virtually maintenance-free products makes it easy to define your space.

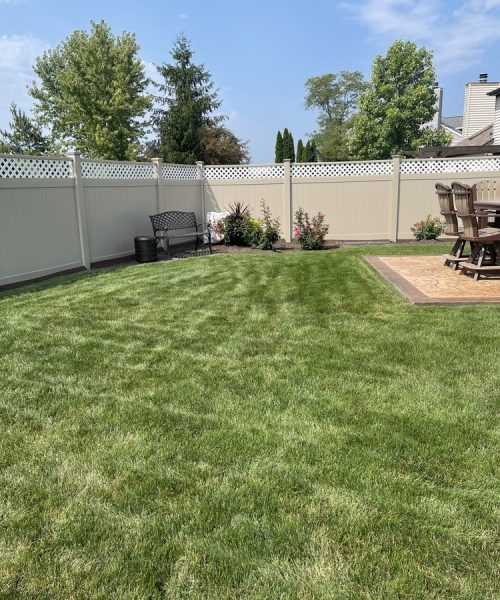

TRI-MAX II
Heights: 48″, 60″, 72″, 84, and 96″ (84″ and 96″ includes an Aluminum Reinforced Mid-Rail)
Sections: 8′ (Center to Center)
Posts – Standard (48″, 60″, and 72″): 5″ x 5″ (.135″ Wall) Standard for 48″, 60″, and 72″.
Posts – Optional (60″ and 72″) 5″ x 5″ (.165″ Wall) for 60″ and 72″.
Posts – Standard (84″ and 96″) 5″ x 5″ (.165″ Wall) Standard for 84″ and 96″. Note: Aluminum Stiffeners Required in all Line & End Posts for 84″ & 96″ heights.
Post Caps: Flat Cap, Gothic, Trim, and Ball Cap Available
Rails: 1 1/2″ x 5 1/2″ Top and Bottom Rails. Bottom Rails are Aluminum Reinforced.
Verticals: 7/8″ x 6″ Snaplock Tongue and Groove
Racking: 10″ Standard
TRI-MAX WITH SPINDLE TOPPER
GREEN SERIES FEATURES
• Sections are knocked down
• Rackable option is included with up to 7° slopes
• Available in white and tan
• Recycled post industrial content in the substrate with standard capstock
• Qualified for LEEDS points as specified by USGBC.
GREEN SERIES TRI-MAX WITH SPINDLE TOPPER SPECIFICATIONS
Heights: 60″, 72″, 84″
Sections: 96″ Centers
Panels: 11.606″ Interlocking Tongue & Groove
Racking: 7° (standard)
Posts: 5″ x 5″ (.130″) Vinyl Post
Post Caps: Flat Caps (standard); Gothic & Ball Caps (optional)
Side Channel (for posts): Included
Gates: Aluminum Reinforced Matching Gates
Colors: White and Tan
